Rays Volk Racing ZE40 M-Spec - 19"
Rays Volk Racing ZE40 M-Spec - 19"
SKU:
Couldn't load pickup availability
The built-in shape is the true functional beauty

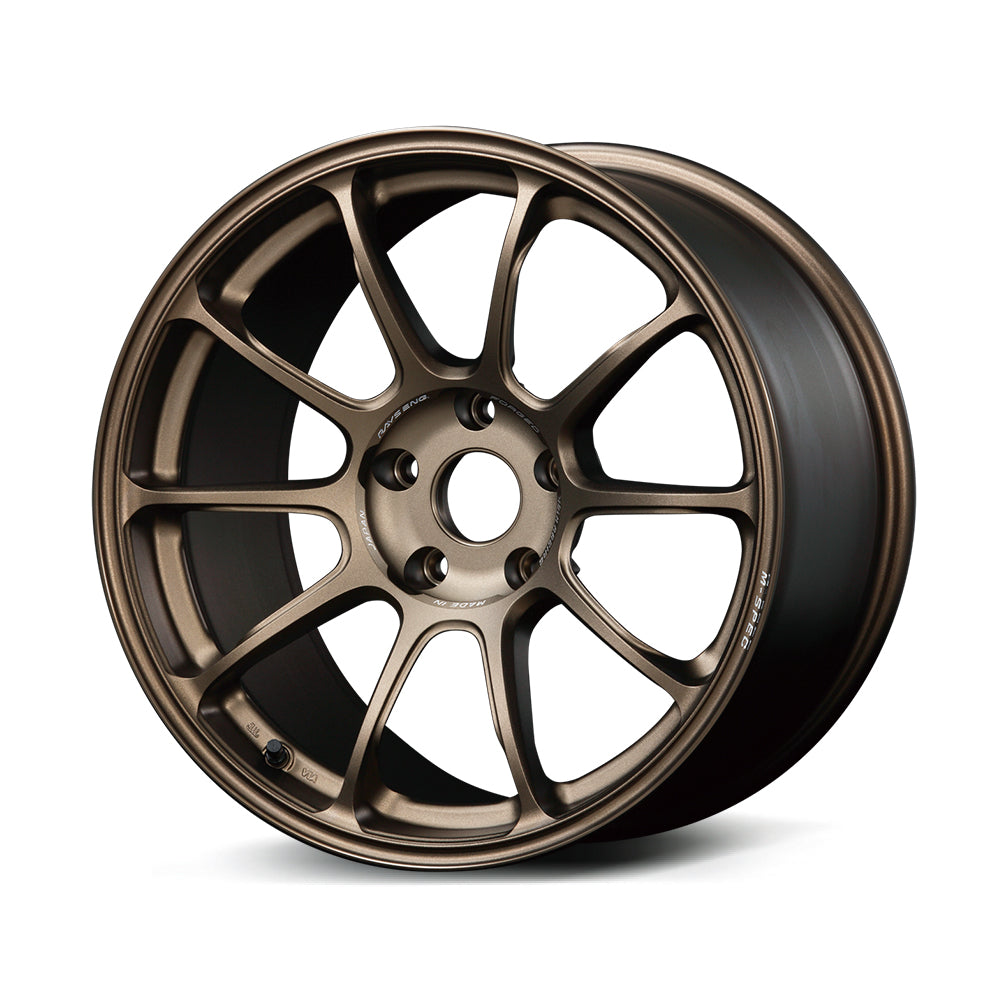

In recent years, the evolving high-grip tires have become able to obtain grip comparable to S tires, transmitting stress to the wheels. The 10-spoke design, allowing for an ideal layout, bounces back the stress of a 5-hole wheel. The suitable and best built design, which has been repeatedly found through analysis and shape review cultivated so far, is in fact the functional beauty.

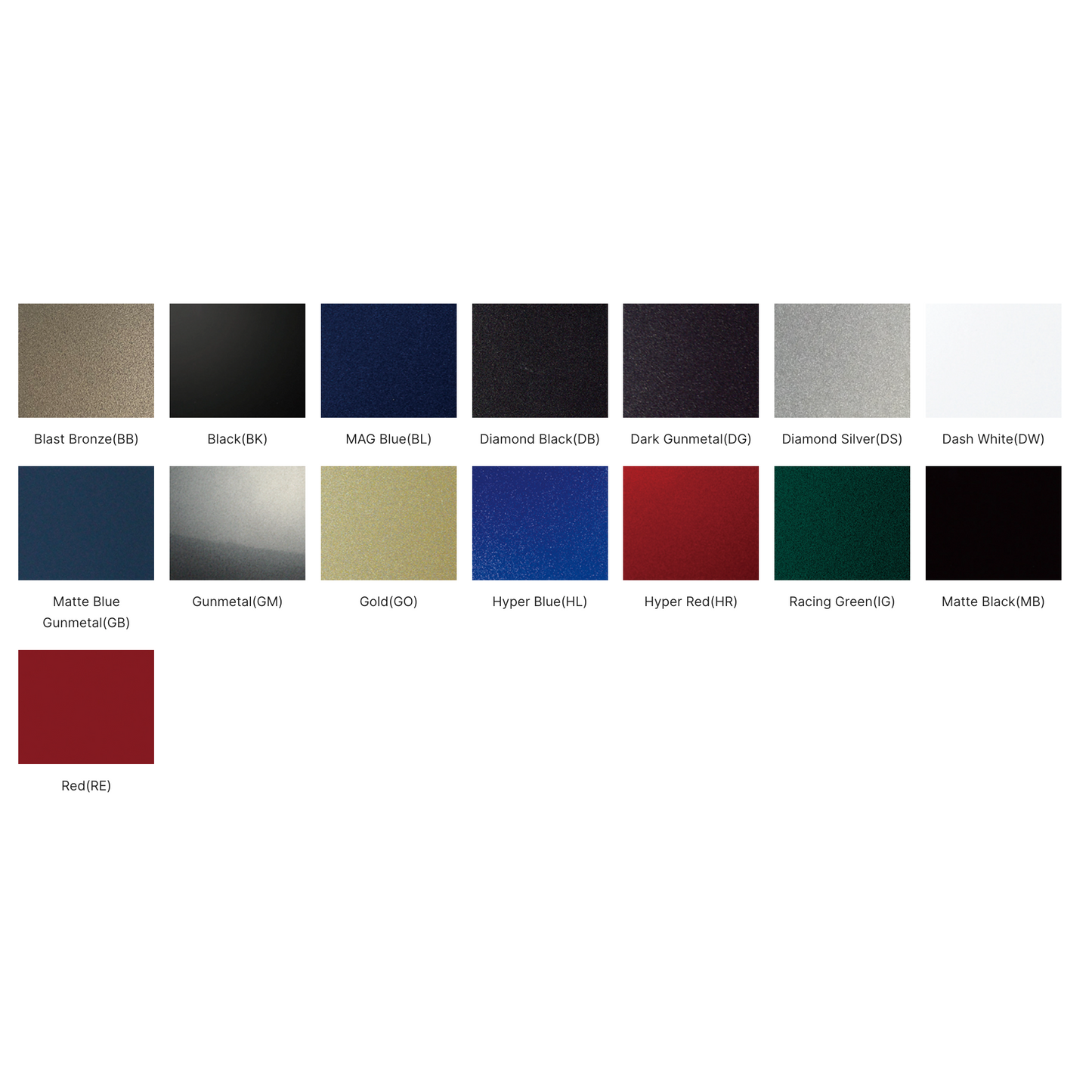

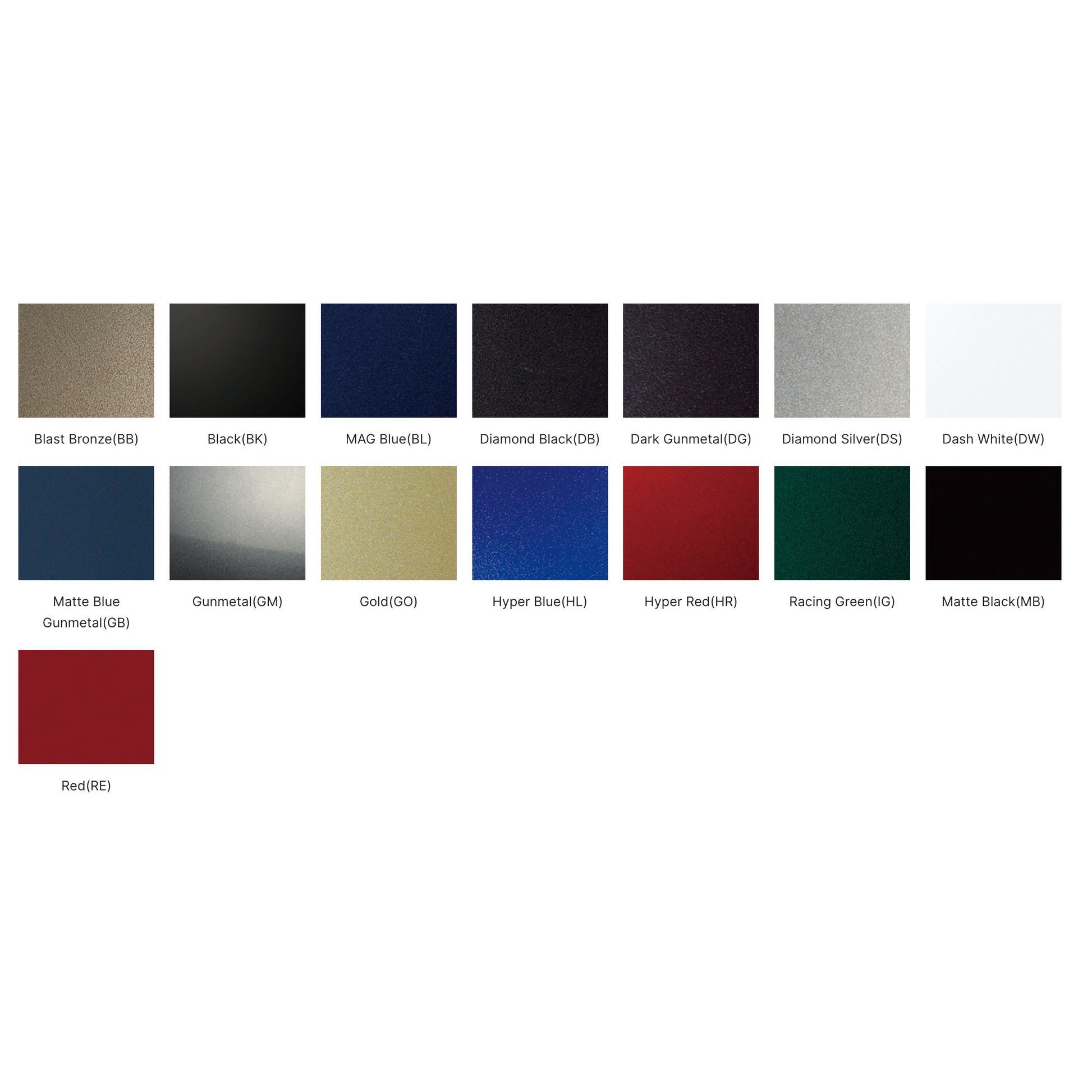

Optional Color: Blast Bronze (BB) / Black (BK) / Mag Blue (BL) / Diamond Black (DB) / Dark Gunmetal (DG) / Diamond Silver (DS) / Dash White (DW) / Matte Blue Gunmetal (GB) / Gunmetal (GM) / Gold (GO) / Matte Black (MB) / Red (RE)
Hyper Color: Hyper Blue / Hyper Red / Racing Green
NOTE: Please select Optional or Hyper Color in the Finish category, and our staff will confirm your order and communicate with you for your desired color.
Spec
ZE40 M-Spec
18inch/19inch
Forged 1pc. Wheel (19inch Reverse Rim)
※Knurling finish
JWL+R Spec 2

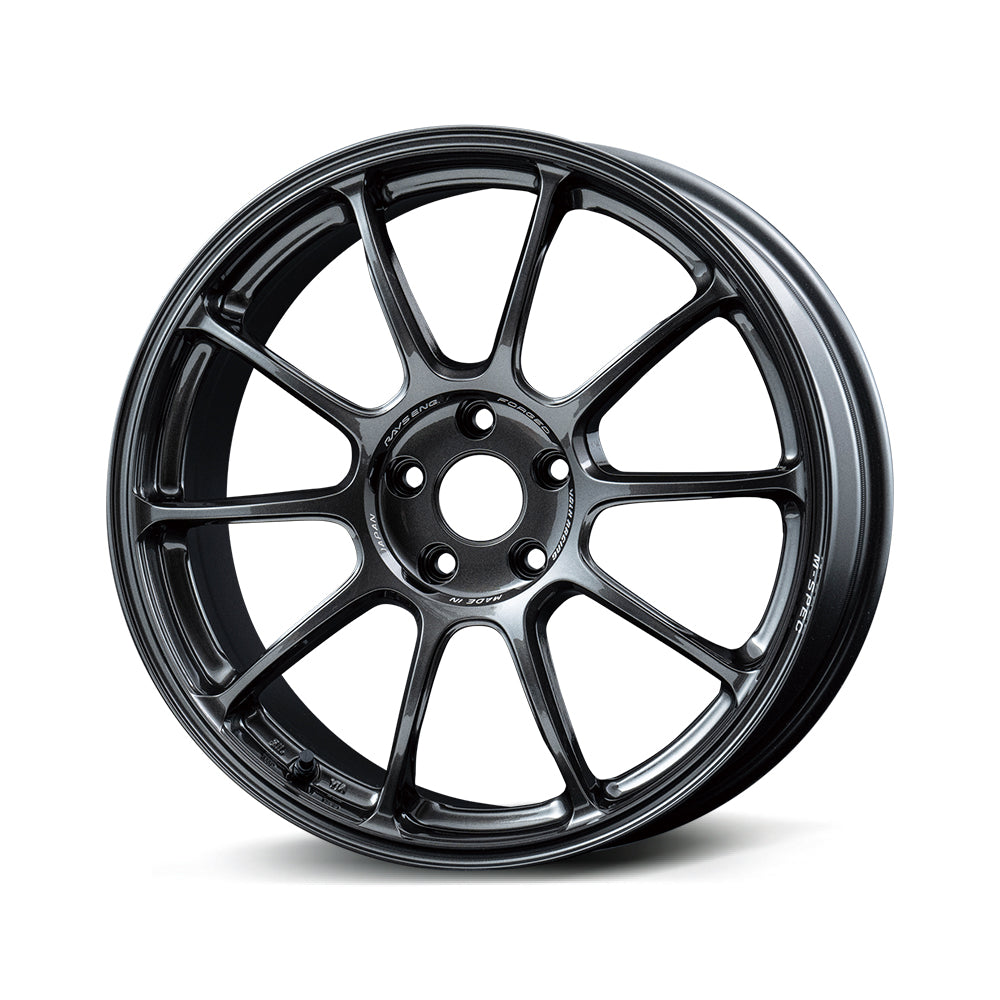

Diamond Dark Gunmetal (MM)
Bronze (Almite) (BR)
OP-2: Extra \3,000 from MM Color
Hyper Blue(HL), Hyper Red(HR), Racing Green(IG): Extra \4,000 from MM color
-
No.49 EUROPEAN ALUMINUM VALVE RAYS BK
Center Cap, Vehicle Specific Parts Set
Face Design
Size / Spec
Caution
※ Hub clearance listed with LOW-type Center Cap installed. Hi-type Center Cap adds an extra 11㎜ of clearance.
・5H-P.C.D.112/120: Cannot fit Mercedes Benz (GL Class, GLS Class, R350 4 Matic 2012-, R550 4 Matic, ML63 4Matic, S550 Plug-in Hybrid, V class [W447], GLE63S 4Matic, EQC400), Bentley, Maybach (57, 62), BMW (X5 7seater, X5 PHV, X5 [F15], X6 Active ・5H-P.C.D.112/120: Cannot fit Mercedes Benz (GL Class, GLS Class, R350 4 Matic 2012-, R550 4 Matic, ML63 4Matic, S550 Plug-in Hybrid, V class [W447], GLE63S 4Matic, EQC400), Bentley, Maybach (57, 62), BMW (X5 7seater, X5 PHV, X5 [F15], X6 Active Hybrid, X7), Land Rover (only for 5H-120), Rolls-Royce, Tesla (Model X).
※ * ：Tuner size. (Tire and or wheel may interfere or protrude from the body/fender on normal based vehicles.
[ CALIPER CLEARANCE ]
▼： IMPREZA (GDB 4POT)
▽： IMPREZA (GDB & GRB 4POT)
Θ： WRX STI (4POT)
η： WRX STI (6POT)
■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿： IS-F
◎： RC-F
＃： SILVIA (S15)
△： SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲： SKYLINE (R34 GT-R)
□： SKYLINE (CKV36, HV37, RV37/400R)
α： SKYLINE (CKV36, HV37), FUGA(Y51)
β： SKYLINE (HV37)
γ： SKYLINE (CPV35)
○： FAIRLADY Z (Z33, Z34, RZ34)
●： FAIRLADY Z (Z34)
Ω： FAIRLADY Z (Z33)
☆： LANCER EVO.(VII～IX, X)
★： LANCER EVO.X
∑： LANCER EVO.(VII～IX)
◆： GT-R (R35/φ380 rotor)
◇： GT-R (R35/φ380, φ390 rotor)
〓： GR YARIS (RZ)
Ψ： ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
