Rays Volk Racing TE37 Ultra Track Edition II - 19"
Rays Volk Racing TE37 Ultra Track Edition II - 19"
SKU:
Couldn't load pickup availability
“TE37” always required evolution
The latest decades includes vehicles with over 500 hp, has about 2 ton chassis weight, and has marvel performance to be equal racing car often appears in the city. To cater to the demand, TE37Ultra 20 inch was added to the lineup, with 19 inch afterwards. In addition, in 2016, the TE37Ultra Track Edition with machined side pockets achieved -200g weight loss with a center cap less specification.In 2019, a further lighter model of TE37 Ultra Track Edition 2 debuts in the TE37 series, destined to be a required evolution. RAYS analyzed useless weight again, and achieved decreased weight of center part of wheel (root of spoke) with analytic technology from developing the WEC LMP-1 and Super GT GT500 class competition wheel. It just 60g, but it indicates evolution. As a color feature, RAYS’s new color Blast Black is adopted. And this model can install center cap to accept demands for those who want to enjoy driving on the street.

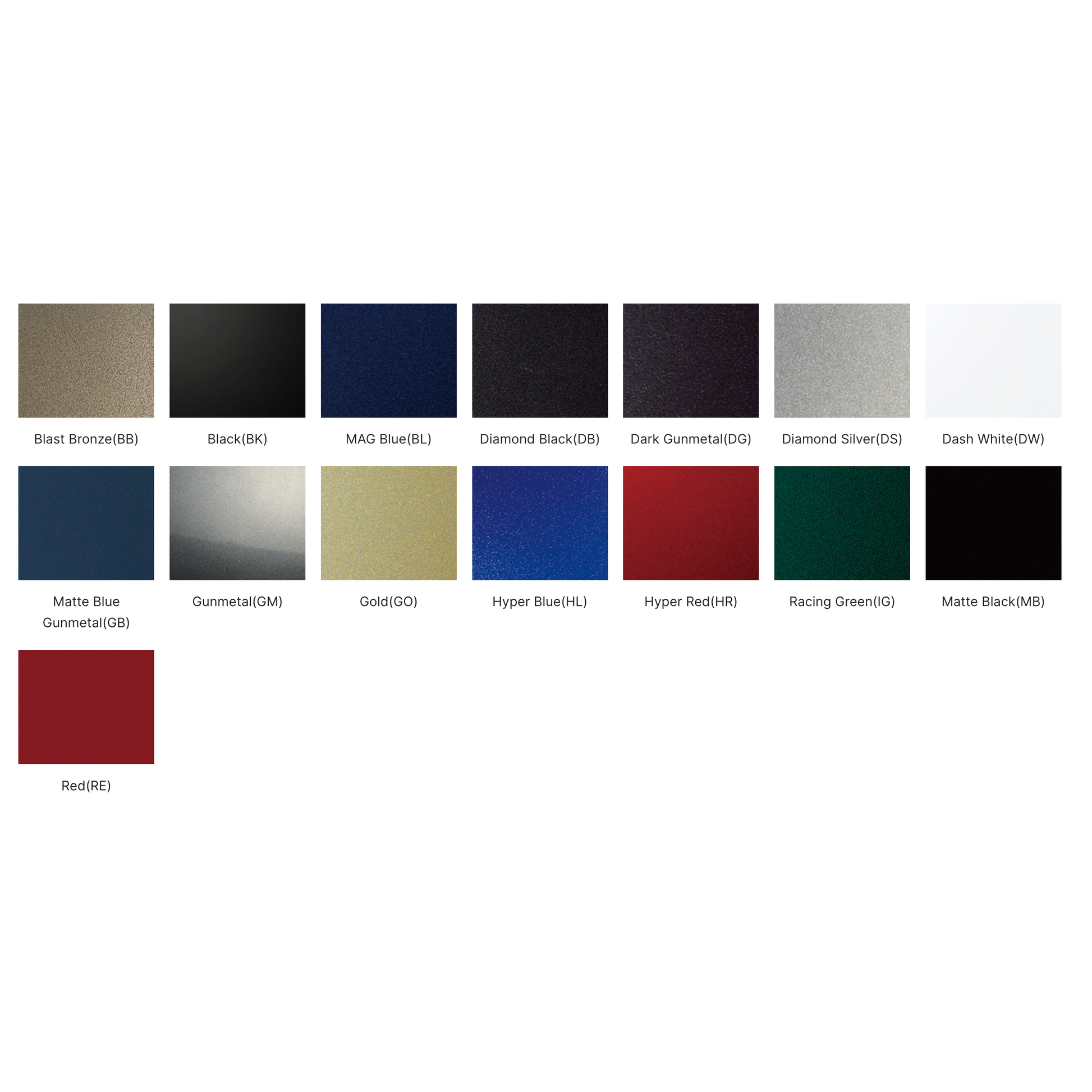

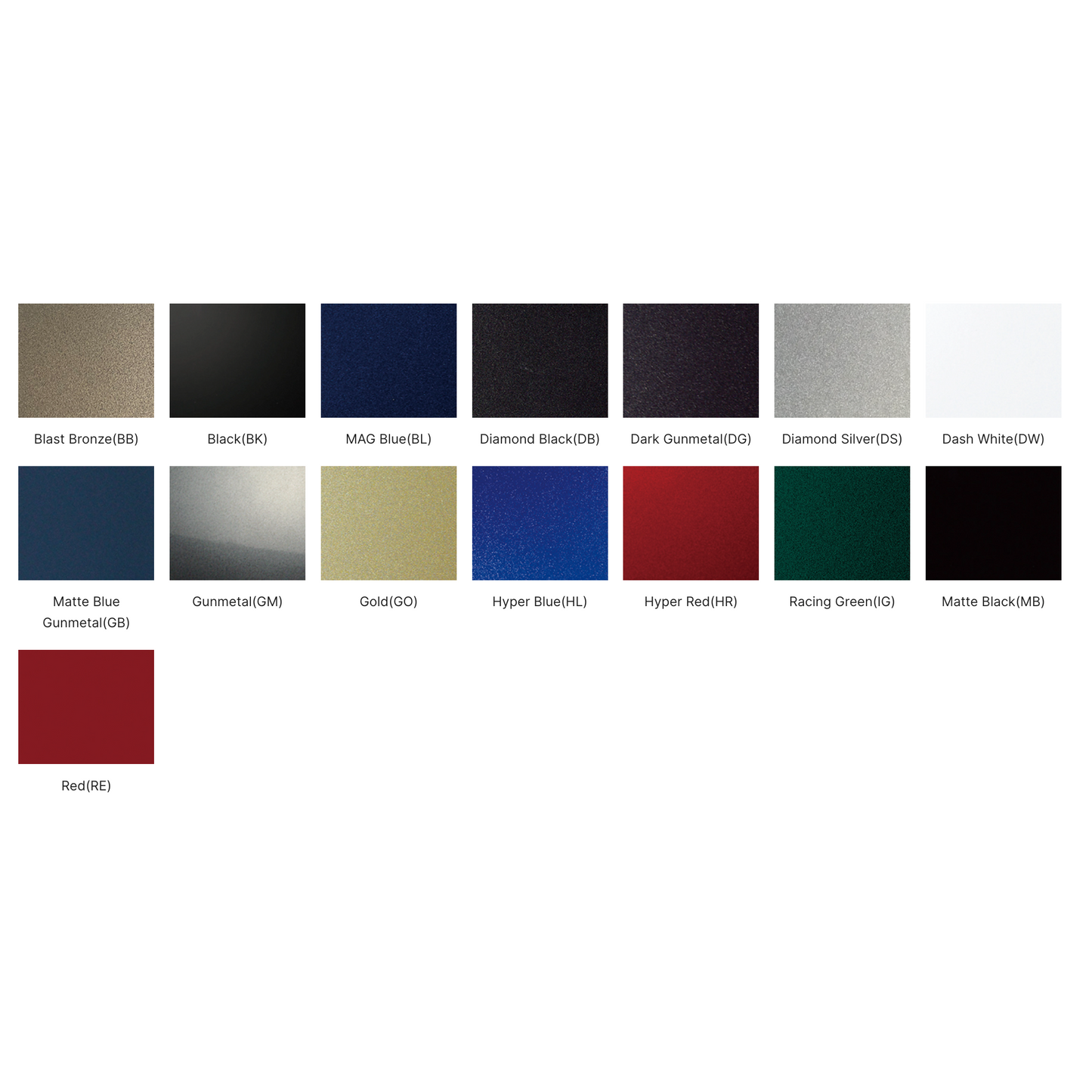

Optional Color (See Chart): Blast Bronze (BB) / Black (BK) / Mag Blue (BL) / Diamond Black (DB) / Dark Gunmetal (DG) / Diamond Silver (DS) / Dash White (DW) / Matte Blue Gunmetal (GB) / Gunmetal (GM) / Gold (GO) / Matte Black (MB) / Red (RE)
Hyper Color (See Chart): Hyper Blue (HL) / Hyper Red (HR) / Racing Green (IG)
NOTE: Please select Optional or Hyper Color in the Finish category, and our staff will confirm your order and communicate with you for your desired color.
Spec

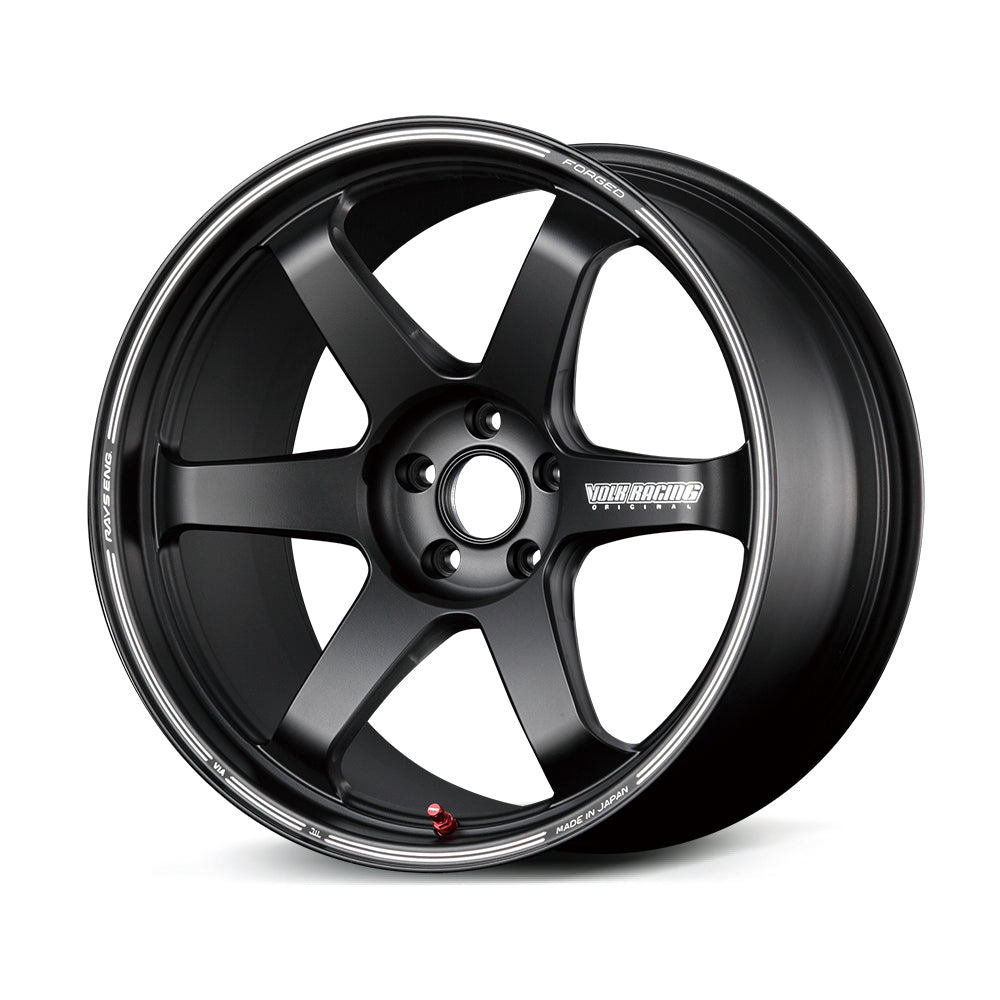

TE37 ultra TRACK EDITION II
19inch/20inch
Forged 1pc. Wheel
Reverse Rim
Knurling finish
JWL+R Spec 2
Blast Black (BC)
OP-2
Hyper Blue(HL), Hyper Red(HR), Racing Green(IG)
-
No.47 HI-SPEED CONTROL VALVE RAYS RD
Center Cap, Vehicle Specific Parts Set
Size / Spec
Caution
※19inch cannot fit 14mm bolt.（P.C.D.:114.3）
※Hub clearance listed with VR Center Cap Model-01 Low installed. High-type Center Caps add an extra 11mm clearance.
※CENTER L is 12.6mm deeper than CENTER S.
・All sizes have 14mm nut/bolt hole.(Drill φ29-φ15)
・5H-P.C.D.112/120: Cannot fit Mercedes Benz (GL Class, GLS Class, R350 4 Matic 2012-, R550 4 Matic, ML63 4Matic, S550 Plug-in Hybrid, V class [W447], GLE63S 4Matic, EQC400), Bentley, Maybach (57, 62), BMW (X5 7seater, X5 PHV, X5 [F15], X6 Active Hybrid, X7), Land Rover (only for 5H-120), Rolls-Royce, Tesla (Model X).
※ * ：Tuner size. (Tire and or wheel may interfere or protrude from the body/fender on normal based vehicles.
[ CALIPER CLEARANCE ]
▼： IMPREZA (GDB 4POT)
▽： IMPREZA (GDB & GRB 4POT)
Θ： WRX STI (4POT)
η： WRX STI (6POT)
■： IS, GS, RC, CROWN (210), MARK-X (3.5L)
⊿： IS-F
◎： RC-F
＃： SILVIA (S15)
△： SKYLINE (R34GT-R, CPV35, CKV36, HV37, RV37/400R)
▲： SKYLINE (R34 GT-R)
□： SKYLINE (CKV36, HV37, RV37/400R)
α： SKYLINE (CKV36, HV37), FUGA(Y51)
β： SKYLINE (HV37)
γ： SKYLINE (CPV35)
○： FAIRLADY Z (Z33, Z34, RZ34)
●： FAIRLADY Z (Z34)
Ω： FAIRLADY Z (Z33)
☆： LANCER EVO.(VII～IX, X)
★： LANCER EVO.X
∑： LANCER EVO.(VII～IX)
◆： GT-R (R35/φ380 rotor)
◇： GT-R (R35/φ380, φ390 rotor)
〓： GR YARIS (RZ)
Ψ： ROADSTER (ND)/124 Spider Brembo
※CALIPER CLEARANCE are for reference only and do not guarantee inspection, and/or the size mandated by local authorities. Selecting sizes is by your own judgement and we recommend consulting fitments with a professional outlet.
