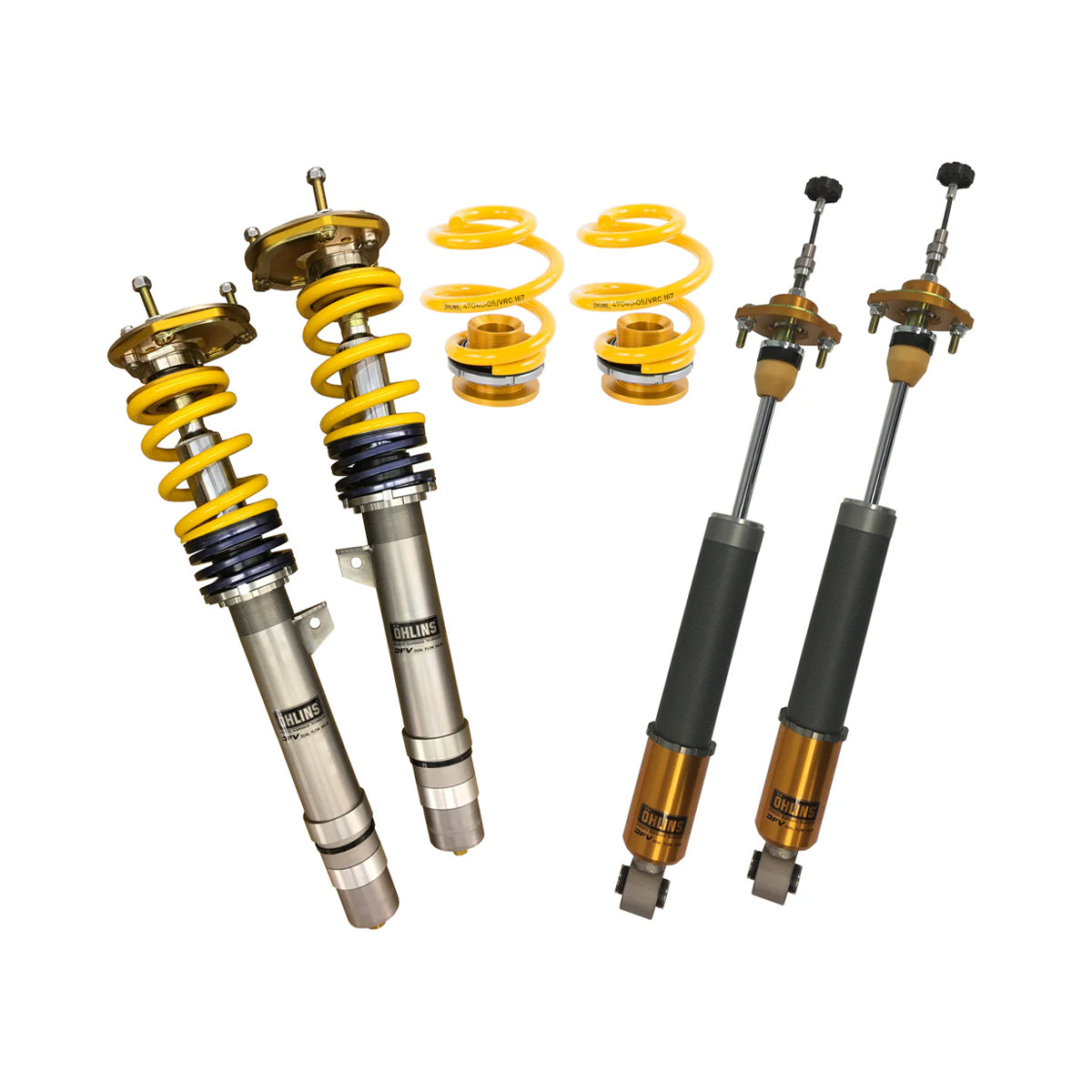

Ohlins Dedicated Track Coilover System - 2008-2013 BMW M3 (E9X)

Ohlins Dedicated Track Coilover System - 2008-2013 BMW M3 (E9X)

BMU MU40S1

$5,081.13 CAD
$5,081.13 CAD
Sale Sold out
Shipping calculated at checkout.

The DEDICATED program demonstrates Öhlins' ability to engineer capable trackday suspension packages tuned ready to install and hit the track with minimal setup/testing. Öhlins’ Dual Flow Valve technology (DFV) provides an uncompromised balance of chassis control and composer over rough sections of track and curbing.  Driver confidence and precision are enhanced to a new level.  Ride height and damping control are adjustable for the exact specifications desired from the driver.  Systems feature monotube damper architecture for improved response with strengthened inverted struts and aluminum body shocks for lightweight and improved cooling effect. This combination of features and tuning result in the ultimate trackday bolt on suspension package.

Key Features

  • Patented Dual Flow Valve
  • Track-focused Tuning
  • Height Adjustable
  • 20 Clicks of Adjustable Damping
  • Monotube Design
  • Rebuildable
  • Off-road Use Only
FRONT FEATURES:
  • McPherson strut, upside down
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Separate ride height adjustment
  • Approximately 15 mm lower than standard with recommended setup
  • Spring rate 120 N/mm
  • Spherical Front Upper Mounts
REAR FEATURES:
  • Conventional shock absorber
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Separate ride height adjustment
  • Approximately 10 mm lower than standard with recommended setup
  • Spring rate 180 N/mm
  • Polyurethane Rear Mounts
