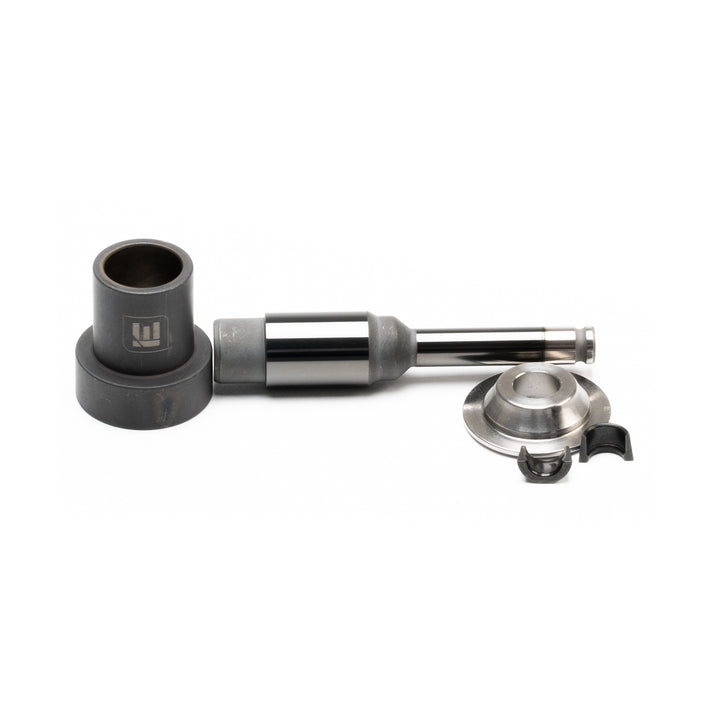

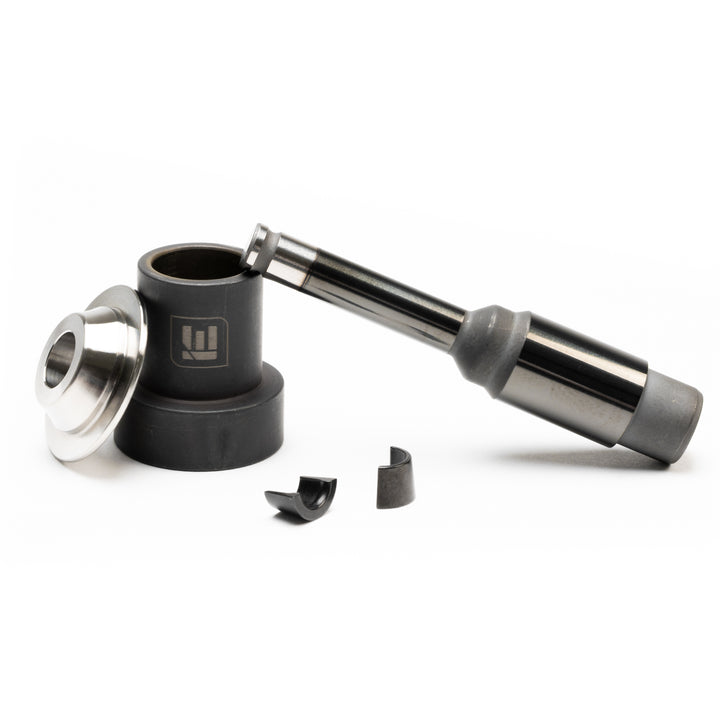

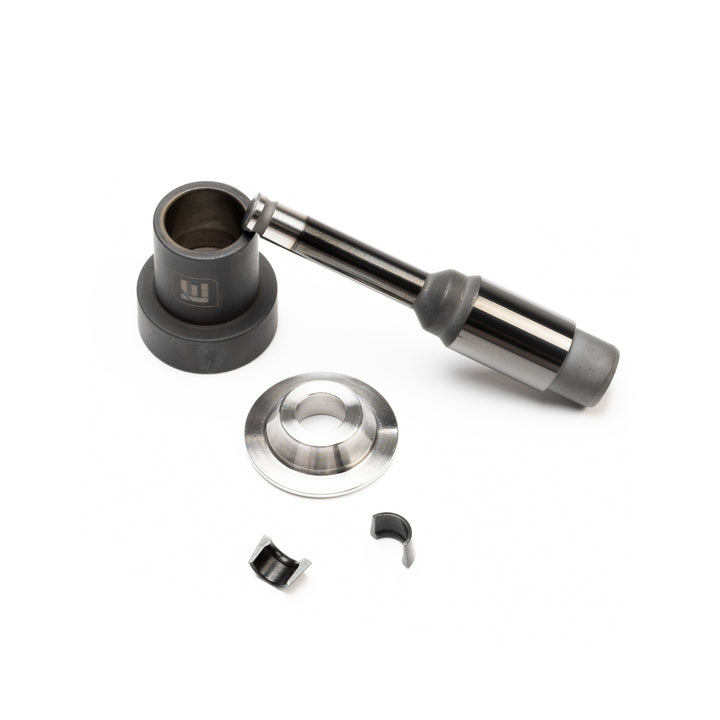

The IE HPFP Internal Kit upgrades the high pressure fuel pump in your Audi B9 3.0T or 2.9T engine with the largest volume possible piston and cylinder design to unlock fuel delivery for hybrid turbos and our Stage 1/2 Plus ECU tunes. Manufactured with top-quality components and an industry-leading QC process to ensure extreme reliability. Increase your fueling overhead and enjoy worry-free HPFP operation for your 6-cylinder turbocharged engine.

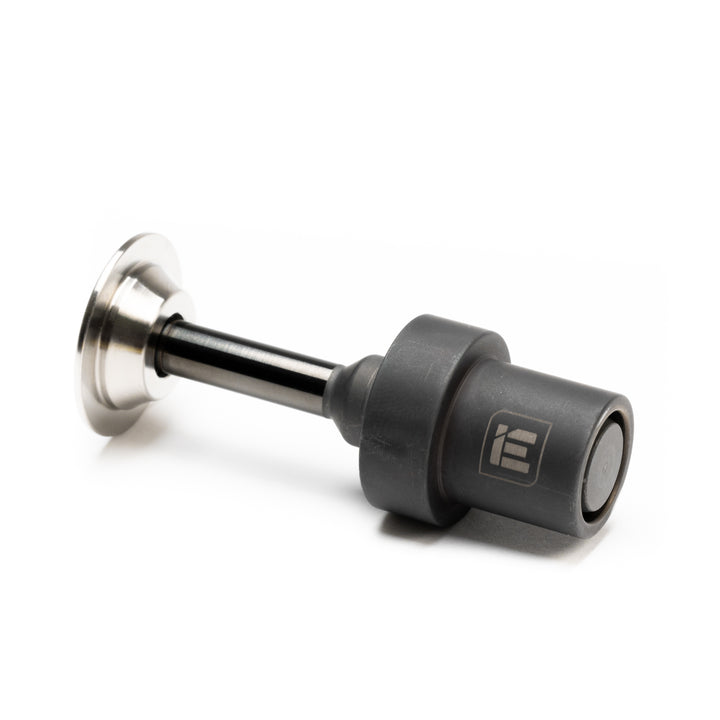

Integrated Engineering HPFP Internal Upgrade Kit - 2018-2024 Audi B9 S4, S5, SQ5 3.0T & RS5 2.9T
Integrated Engineering HPFP Internal Upgrade Kit - 2018-2024 Audi B9 S4, S5, SQ5 3.0T & RS5 2.9T
SKU:IEFUVZ1
Regular price
$550.29 CAD
Regular price
Sale price
$550.29 CAD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
REQUIRED FLOW FOR
E85 & HYBRID
ECU TUNES
STROKE VOLUME
38.58%
INCREASE OVER STOCK
LARGEST POSSIBLE
11.68MM
PISTON DIAMETER
LEADING FEATURES
- Highest possible flow -safely run ethanol & hybrid turbo ECU tunes
- In-house verified -Broken-in and bench tested on our pump dyno
- Tool steel pin & cylinder -Extreme resistance to heat and abrasion
- DLC-coated pin -Low friction long-life coating
- Nitrided cylinder -Increases hardness and wear resistance
- Titanium retainer -Ultra lightweight and high strength
- Engineered, designed, & manufactured in the USA
ADDED DISPLACEMENT
Your HPFP is an integral part of the B9 3.0T & 2.9T platforms direct injection (DI) system and provides exceptionally high-pressure fuel (exceeding 2900psi) to the injectors. When running turbo upgrades or ethanol fuel, the stock HPFP internal volume becomes the limiting factor when increasing power. IE's HPFP internals install into your factory pump housing and increase the bore and piston size of the pump internals, adding more flow, delivering more fuel, and safely allowing for higher horsepower & torque output.
FLOW TESTING
IE HPFP Upgrade Internals offer the largest possible size within the B9 V6 pump body. The factory-installed 9.92mm internal pin has been enlarged to 11.68mm, increasing the stroke volume from 448mm^3 to 621mm^3. The result is a maximum gain of 38.58% more flow over stock!
CUTTING-EDGE RELIABILITY
Every piston and cylinder is CNC machined to exacting sizes, assembled, and measured as a matching set in-house. Tolerances are hand-verified using specialized measurement tools and verified down to 0.00005 of an inch to ensure reliability and proper function. These extreme manufacturing and QC processes have built IE's leading reputation in HPFP reliability and cemented our HPFP designs as the popular choice for those requiring a worry-free operation.
PUMP DYNO VERIFICATION
IE HPFP designs are verified and torture-tested on our fuel pump dyno. This machine can replicate countless miles and various RPM situations to substantiate every detail of the HPFP design. This strict engineering process, combined with our 100% in-house CNC machining, obsessed quality control, and top-shelf components, is why IE HPFP Kits have earned their reputation for reliability.
