HKS S-Type Oil Cooler Kit - 2013-2020 Subaru BRZ/86/FRS

• Newly designed single tube type fitting.
• From engine bench tests and experience from D1 racing it is found that the oil pressure of the FA20 engine is extremely high compared to the conventional mass-produced engines. (Max oil pressure: over 12kgf/cm²) New single tube fitting withstanding the high oil pressure was newly designed and included in the kit.

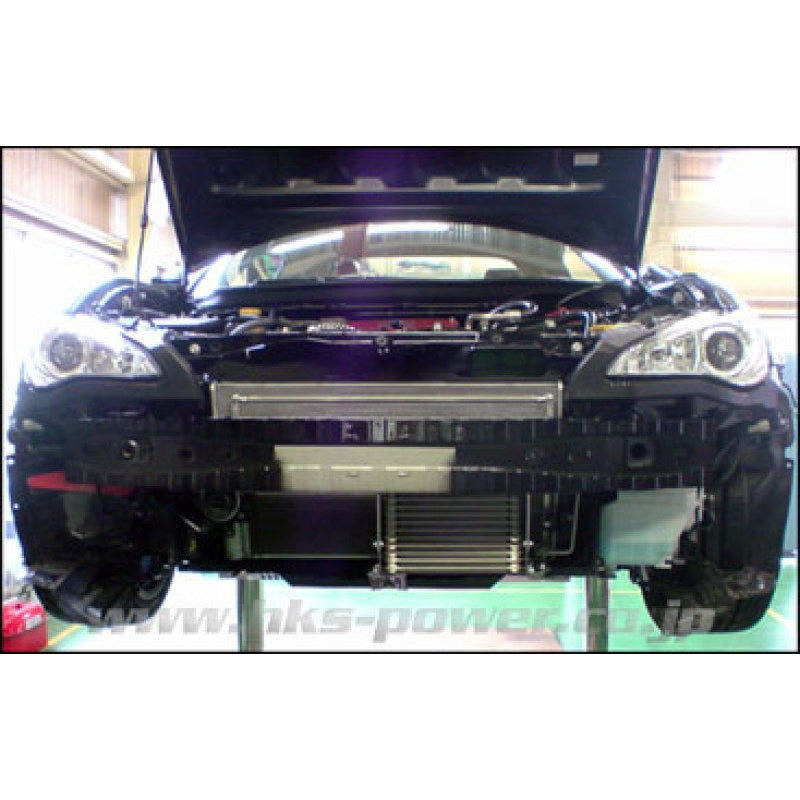

• Including the pre-assembled hose, bracket, and air guide and locating the core in front of the radiator enable an easy installation. Also, there is no major modification required to the chassis.

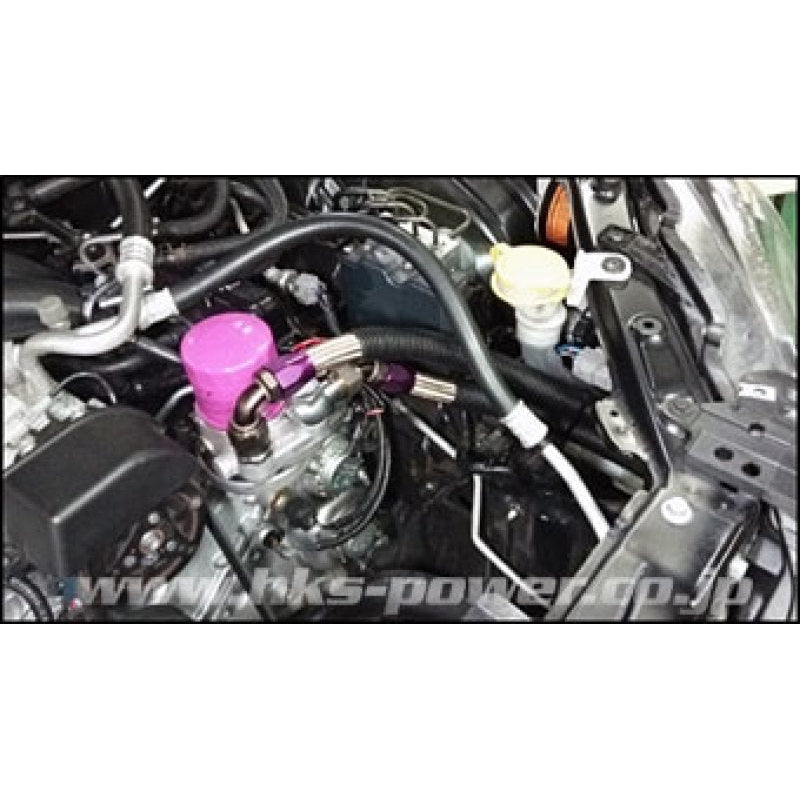

• Special spacer and center bolts were designed exclusively for this kit to install the oil cooler attachment without modification.
• The thin 15-layer core improves the cooling performance and makes installation easier.
• This kit is applicable only to the NA engine.(A kit for the supercharged engine is under development)

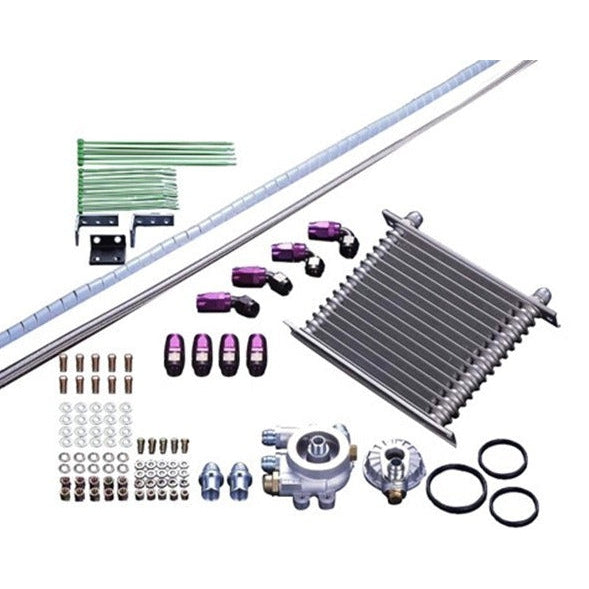

■The following parts are included

Oil Cooler Core / S-type Attachment / Spacer / Center Bolt / Banjo / Banjo Bolt / Bracket / Air guide / Accessory Parts

■The characteristics of oil temp. and the water temp.

* This is the result of the test HKS conducted. The result may vary depending on the test conditions.

●Test Data

Test Vehicle: TOYOTA 86
Specifications: LEGAMAX Premium / Premium Suction
Test Course: Fuji International Speedway Racing Course
Weather: Sunny
Temperature: 27℃

* The oil temperature of a vehicle without the oil cooler reached 140℃ 5 minute after start driving the course, and the vehicle had to go slow to cool the oil temperature down.
The oil temperature of a vehicle with HKS Oil Cooler was maintained around 115℃ through the 30 min test drive without any trouble.
