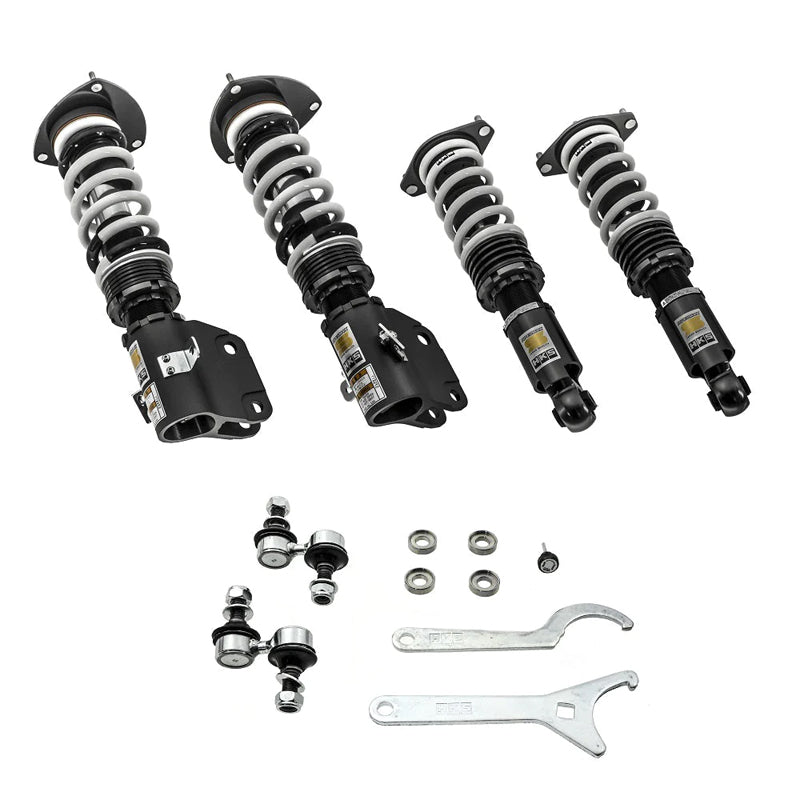

HKS Hipermax S CT9A Full Kit - 2003-2007 Mitsubishi Lancer Evolution 7/8/9

This set of suspensions is designed to replace the factory suspension-related shock absorber/dampers and springs. Building upon the 3 decades of suspension development and 9 years since the last version of the Hipermax IV GT release this series has unified the many different street-based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit-specific HIpermax IV-SP series, all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high-level performance on the circuit as well. With massive adjustability in ride height and damper settings, these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance.

APPLICATION

• Mitsubishi Lancer Evolution 7/8/9 (2003, 2004, 2005, 2006, 2007)

FEATURES

Series: Hipermax S
Spring Rate N/mm (kgf/mm):

• Front: 78(8)
• Rear: 59(6)

Free Height (mm):

• Front: 250 (Barrel)
• Rear: 200

Recommended Range to change Spring Rate N/mm (kgf/mm):

• Front: ±20 ( 2 )
• Rear: ±20 ( 2 )

Damper Force (Rebound/Damping):

• Front: 888/476
• Rear: 693/373
• Note: Damping force is at piston speed 0.1m/sec.

Default position of Dial:

• Front: 15
• Rear: 15

Damping Force Adjustment:

• Front: 30 Steps
• Rear: 30 Steps

Height Adjustable Lower Bracket:

• Front: Yes
• Rear: Yes

Upper Mount:

• Front: Rubber Bush
• Rear: Rubber Bush

Damper Layout:

• Front: Inverted
• Rear: Normal

Damper/Spring Layout:

• Front: Coilover
• Rear: Coilover

Damping force adjustable with Wire:

• Front: N/A
• Rear: N/A

Helper Spring (Spring Rate N/mm):

• Front: N/A
• Rear: 19.8

Ride Height Specification

Maximum Adjustable Range High - Low (mm):

• Front: -8 ～ -59
• Rear: -5 ～ -71

Drivable Range High - Low (mm):

• Front: -8 ～ -59
• Rear: -5 ～ -71
