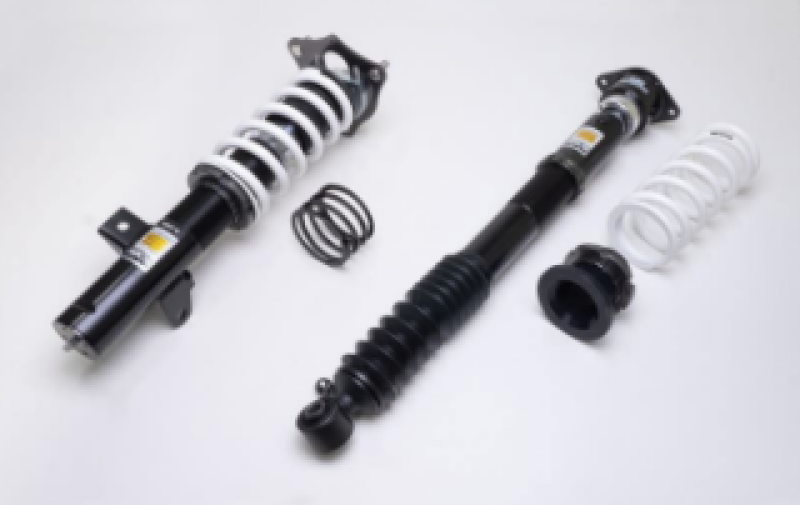

HKS Hipermax S Coilovers with Front Pillowball Mount - 2017-2022 Honda FK8 Civic Type R

Note:
* Please install the provided helper spring on the front suspension when lowering the vehicle height to -16mm or lower from the shipment. It can be adjustable from -17 to -40mm.
* When lowering the vehicle height to -16mm or lower, please install the provided helper spring on the front suspension. A tire contacts the suspension when the steering turns lock to lock state at the OEM tire wheel when lowering the vehicle height using the provided helper spring. Please note that the extent of interference will change depending on the rim width and offset of the wheel.
* An error message will be displayed when the OEM suspension is removed. The error display can be avoided by purchasing a canceller separately. (Code No. 45012-AH002: SEC II Type-H)

Spring Rate: Front: 8.0k / Rear: 6.0k

The three existing MAX IV GT series becomes the HIPERMAX S starting in 2021. 9 years have passed since the launch of MAX IV GT, and during that time HKS has developed new technologies. It will be a new series that has all three conventional models characteristics, and been evolved by damping force characteristics, durability, and beauty. The HIPERMAX S series offers the best ride so far in HKS suspension history.

HIPERMAX S Technical Features:

Front Pillowball Mount
The front upper mount employs the pillow ball spherical bearing. It makes it possible to change the camber angle compared to the existing rubber bearing type of the HIPERMAX S. A direct handling feeling of the car from the pillow ball top mount brings more joy to driving. It reduces unnecessary movement by improving the follow-up performance on the road surface by moving the suspension flexibly. This will provide improved ride comfort on the street.

Dual PVS
We evolved the existing preload valve system to the dual preload valve system to suppress the generation of unnecessary damping force during higher piston speeds. This provides major improvement in ride comfort without affecting the driving performance.

Wide range damping force adjustment mechanism
The improved shape of the Needle jet expands the range of damping force adjustment. This makes is possible to handle driving on a wider range of stages.

Evolution of Bump stop rubber
A new shape of bump stop rubber reduces the body roll and achieves ride comfort at the same time which cannot be achieved with general hydro bump stop rubber.

Low friction technology
With advanced tribology technology, we have achieved even higher durability and lower friction than conventional products. This technology contributes to improved ride quality and handling performance.
