Integrated Engineering Audi 3.0T Supercharger Pulley Upgrade - 2009-2017 Press-Fit Style
Integrated Engineering Audi 3.0T Supercharger Pulley Upgrade - 2009-2017 Press-Fit Style
SKU:IEBAVJ1C
Couldn't load pickup availability

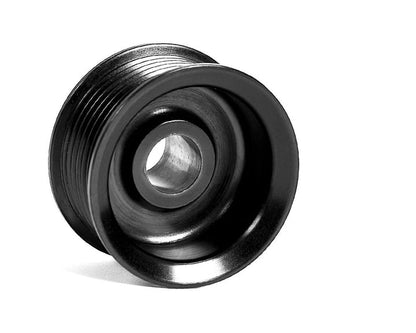

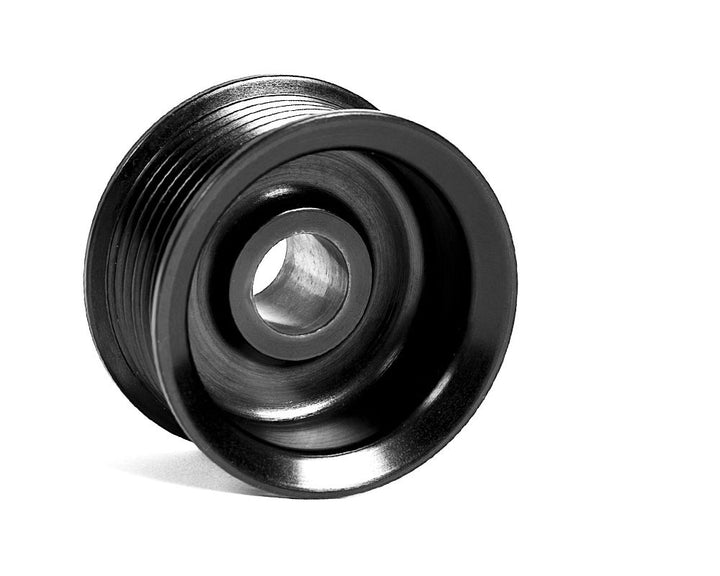

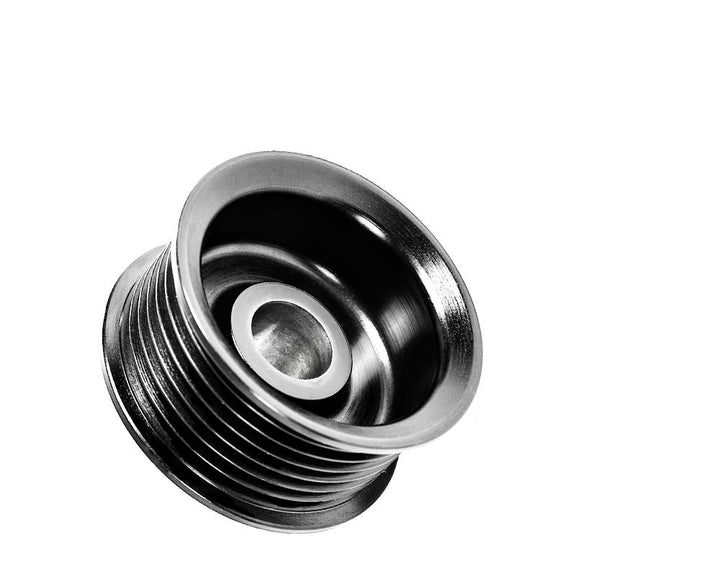

IE PRESS-FIT SUPERCHARGER PULLEY UPGRADE AUDI 3.0T
The IE supercharger pulley for 3.0T V6 Audi engines is a great mod to extract more power. Paired with a Stage 2 Tune, you can expect gains in the 15-25 HP range on pump fuel. This is achieved by spinning the supercharger unit significantly faster than stock, resulting in higher boost levels.
LEADING FEATURES
- Increases supercharger RPM by 10%
- Increases supercharger boost levels
- CNC machined from billet steel
- Inside bore precision honed at IE
- Zinc plated to ensure no rust
- Replaces stock pulley on Eaton TVS 1320 Superchargers
- Engineered in-house using CAD modeling and FEA analysis
WHAT DOES A SUPERCHARGER PULLEY UPGRADE DO?
IE is excited to offer it’s Supercharger Pulley for Audi 3.0T FSI Engines found in B8/B8.5 S4, S5, Q5, SQ5, C7/C7.5 A6, A7, and Q7 models. The pulley functions by increasing the supercharger RPM throughout the full powerband. At redline supercharger speed is increased by 1800 RPM. The IE pulley is 57.50mm in diameter, making it one of most aggressive and powerful on the market.
PULLEY SPECIFICATIONS
| PULLEY TYPE | SUPERCHARGER PULLEY DIAMETER | CRANK PULLEY DIAMETER | SUPERCHARGER RATIO |
| Stock Pulley | 63.20 | 162.25 | 2.5672 |
| IE Stage 2 Pulley (SC pulley only) | 57.5 | 162.25 | 2.8217 |
| IE Dual Pulleys (SC & crank pulleys) | 57.5 | 188 | 3.2695 |
WHAT'S INCLUDED & WHAT'S SOLD SEPARATELY
The following items are included:
-
1X IE Overdrive Supercharger Pulley
The following items are not included but required:
- Stage 2 tune (IESOCGJ2)
- 3.0T Supercharger Pulley Puller Tool (IEBAVJ4)
Recommended, but not required items:
- Cold Air intake (IEINCG2 S4 intake or similar)
- Heat exchanger upgrade
INSTALLATION
In a nutshell, you will need to remove the stock supercharger pulley in order to install an IE unit. You will need a 3.0T Pulley Puller Kit and a toaster oven or hot plate to heat the pulley for installation. Due to the hardware and tools required, professional installation may make more sense for casual enthusiasts. Our full install guide is located HERE.
FITMENT
- Audi S4 2009-2016 (B8/B8.5) 3.0T
- Audi S5 Coupe 2013-2015 (B8.5) 3.0T
- Audi S5 Convertible 2008-2015 (B8.5) 3.0T
- Audi SQ5 2014-2017 (8R) 3.0T
- Audi Q5 2009-2017 (8R) 3.0T
- Audi A6 2010-2015 (C7) 3.0T
- Audi A7 2010-2015 (C7) 3.0T
*Does not fit 2016-2017 A6 & A7 3.0T CREC engines, these updated engines require IE CREC Upgrade Pulley (IE Part Number IEBAVJ5). CREC engine is also found in ROW (rest-of-world) markets on some late-model S4 & S5 3.0T as well. CREC engines are easily identified as the supercharger pulley has 4 bolts to attach it to the supercharger instead of a press-fit style.
